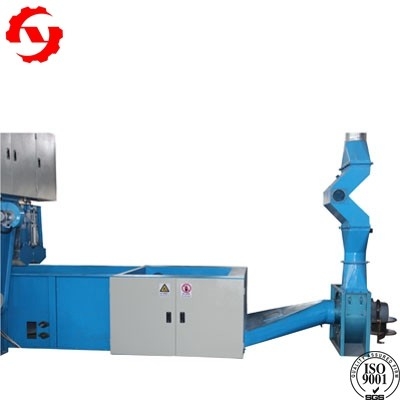

1200mm Fine Cotton Opening Machine For Carpert Making 200kg/h

1200mm Fine Cotton Opening Machine For Carpert Making 200kg/h

1200mm Fine Cotton Opening Machine For Carpert Making 200kg/h
1200mm Fine Cotton Opening Machine For Carpert Making 200kg/h
1200mm Fine Cotton Opening Machine For Carpert Making 200kg/h
Product Details:
Place of Origin: China
Brand Name: HongYi
Certification: ISO9001/CE
Model Number: HYKB
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2 set per month
Contact Now
Detailed Product Description
Product Name: Opener Width: 1100-2000mm
Capacity: 200kg/h
High Light:

Fiber Opening Machine

,

Cotton Waste Recycling Machine



Changshu CE / ISO9001 1.2 fine opening machine for polyester



Specification



Function and characteristics

Open and blend the fibers prior to the next processes

There are several options for the opener depended on the fibers to be used

These options are :1.toothed,2.pin plate opener or3. Wired opener

A plate magnet is included for metal extraction. Alarm and reverse running when jammed

Structure :

Intergrated numerical control machining of bending frame work for stability

Even feeding by holding method

Strong magnet for sucking metal dusts

Structure of opening roller :rigid aluminium alloy carding plate or carding wire

Working width(mm) 1000-2000(customized)
 capacity (kg/h) 100-500(can be decreased and increased)
 feed roller  Dia.(mm) 75
   Rotation speed(r/min) 16
 beater  Dia.(mm) 420
   Rotation speed(r/min) 900
 installed power 6.95KW
dimensions 4500x1800x1000
 net weight 0.8T

1200mm Fine Cotton Opening Machine For Carpert Making 200kg/h 0

Pre-Sales Service
*Inquiry and consulting support
*Sample testing support
*View our factory


After-Sales Service
*Training how to install the machine , training how to use the machine
*Engineers available to service machinery overseas
*Warranty :12 months
*Certificate : ISO9001 CE


Trade information
*Payment terms : 30%deposite by TT,LC , Western union ,Moneygram
70% as balance paid before delivery LC
*Delivrey time :Appox 7 working days after receiving the rest payment
*Package : nake ,wooden case
*Warrantty:12 months
*After sales service :we will send 2-3 workers to do the installation and commissioning
of the line at the request of the buyer . and the buyer should provide round-trip air plane
tickets ,accommodation and allowance , the allowance is 70USD /person/day
*HS code :84490090
*MOQ: 1set













Certificate :



1200mm Fine Cotton Opening Machine For Carpert Making 200kg/h 1

Exhibition :



1200mm Fine Cotton Opening Machine For Carpert Making 200kg/h 2



Agent :

1200mm Fine Cotton Opening Machine For Carpert Making 200kg/h 3




1200mm Fine Cotton Opening Machine For Carpert Making 200kg/h 4
