| Place of Origin: | China |
| Brand Name: | HONGYI |
| Certification: | ISO9001, CE |
| Model Number: | HYKS |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotitable |
| Packaging Details: | PE film |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5 sets per month |
| Product Name: | Fiber Opening Machine | Working Width: | 1000mm-1500mm |
|---|---|---|---|
| Capacity: | 650kg/h | Color: | Customized |
| Cylinder: | Pin Board Or Carding Wire | Warranty: | 12 Months |
| High Light: | geotextile fine opening machine,1.5m fine opening machine,Nonwoven polyester fine opener |
||

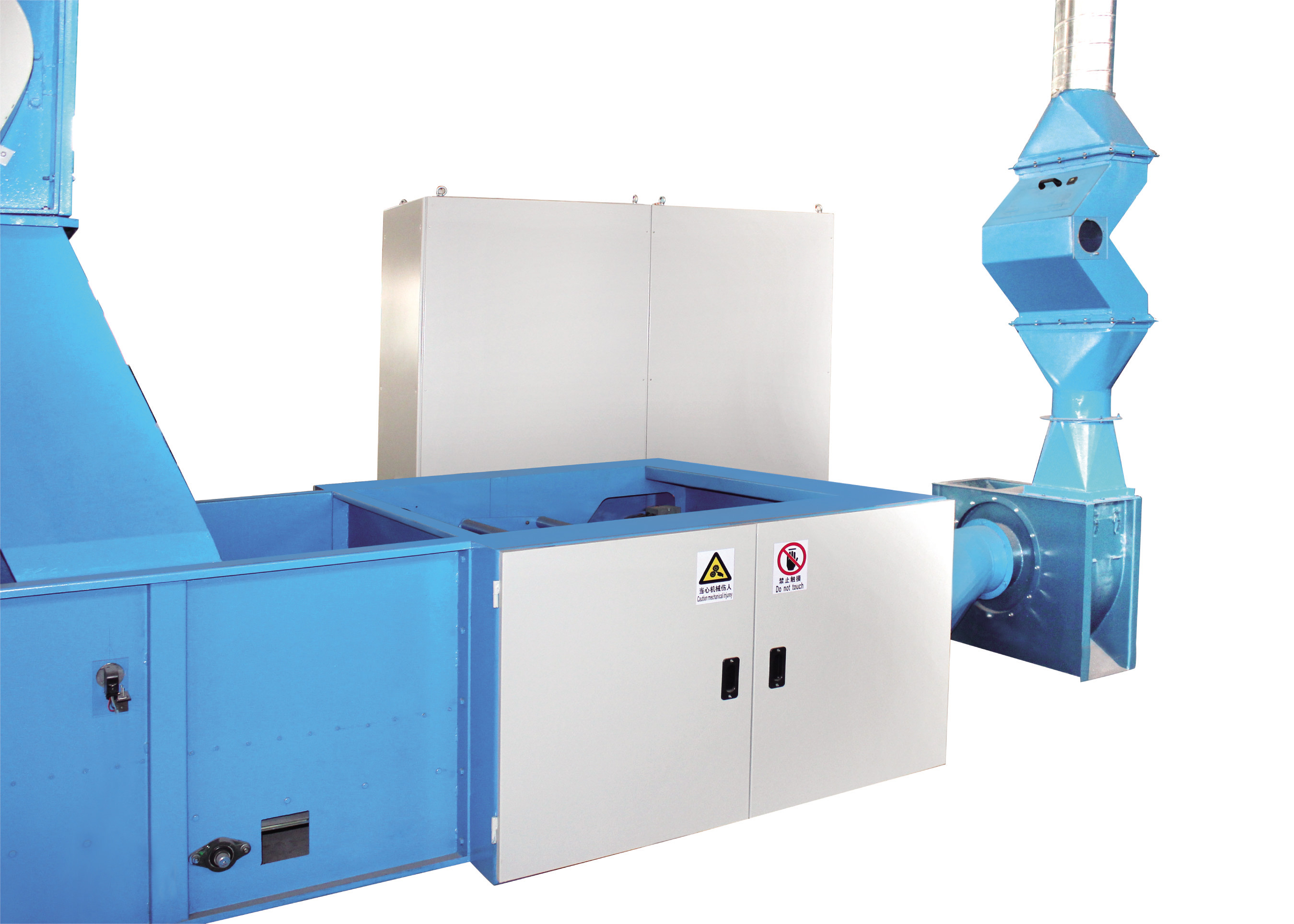

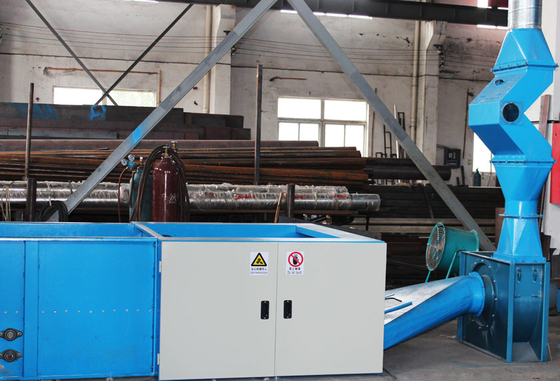

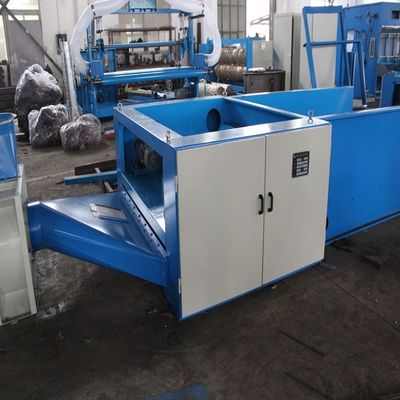

Pin board nonwoven polyester fiber opening machine for carpet
Product description:
•The fiber opening machine is specialized in opening conjugate hollow polyester fiber, wool, wadding fiber waste, and other filling fiber shorter than 100mm. High capacity can be from 200kg to 400kg per hour.
Functionality & application:
1.Preliminary opening the raw material fibers,
2.While it also helps to filter off impurities and mix the fibers.
3. Available for opening various fibers
Structure:
1) The frame is made and welded by 10mm thick Q235-A steel plate, with qualitative processing.
2) Feeding lattice is leather belt matched with bale openers to provide transfer the fiber.
3) The feeding roller is Φ150mm steel groove roller with counter-press structure from up and down.
4) The opening roller is Φ520mm seamless steel tube matched with aluminum pin plates, calibrated dynamic balance.
5) Transferring fan is driving separately, matched with transferring air hose Φ300mm, and there is powerful magnet on the transitional part.
6) Feeding is controlled by the photoelectricity of cabinet collector or blending machine with reversing switch.
7) It's main structure is produced by computerized laser cutting machine that is stable, long life and lower maintenance.
8) The rollers are made by wire, which is stable, long life and lower maintenance, the material opening rate can be more than 98% without hurting the original silicon.
9) Professional roller balance process that the machine is running without noise, shaking.
Technical parameters:
| Working width | 1000mm, 1300mm, 1500mm |
| Capacity | 250kg/h, 500kg/h, 650kg/h |
| Rotary speed | 900RPM |
| Opening method | Pin board, carding wire |
| Installed power | 15.2Kw |
Trade information:
| Trade terms | FOB, CNF, or CIF |
| Lead time | 90 days after deposit. |
| Payment terms | 30% advance payment, 70% paid off before delivery. |
| Warranty | twelve (12) months after mechanical and electrical commissioning. |
| After-sale service |
The seller is responsible for installation and debugging. The buyer is responsible for the round-trip airplane tickets, accommodation, medical treatment, safety and relative fees. In addition the buyers should assign translator, workers, electrical cable (from machines to control panel and from power to control panel) and tools for installation to cooperate with the work. Installation cost is USD180/Day/engineer and totally installation period is about 30-40 days depending on well cooperation of the buyer. |
Company information:
HONGYI is a professional nonwoven machinery manufacturer in China for around 10 years. And our products have been supplied to more than 20 countries all over the world, such as Mexico, Greece, Argentina, Algeria, Egypt, Brazil, Thiland, and many other Asian countries. We can provide many kinds of nonwoven machines, such as needle punching production lines for geotextile, synthetic leather substrate, filter materials, carpet, automotive interiors, etc. Thermal bonding wadding lines for mattress, blankets, quilts, pillows, sofa cushion and so on. And we also provide single nonwoven machines for our customers to help them to updated their old lines step by step.
