Place of Origin: | China |
Brand Name: | HongYi |
Certification: | ISO9001/CE |
Model Number: | HYKB |
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiation |
Packaging Details: | Packed in carton firstly,and then reinforced with wooden case for outer packing |
Delivery Time: | 10 working days after received your payment |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 2 set per month |
Product Name: | Opener | Width: | 1100-2000mm |
---|---|---|---|
Capacity: | 200kg/h | ||
Highlight: | Cotton Opening Machine,Cotton Waste Recycling Machine |

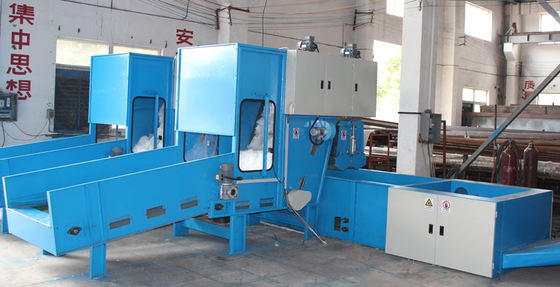

Changshu CE / ISO9001 nonwoven polyester fiber fine opening machine
Specification
Function and characteristics
Open and blend the fibers prior to the next processes
There are several options for the opener depended on the fibers to be used
These options are :1.toothed,2.pin plate opener or3. Wired opener
A plate magnet is included for metal extraction. Alarm and reverse running when jammed
Structure :
Intergrated numerical control machining of bending frame work for stability
Even feeding by holding method
Strong magnet for sucking metal dusts
Structure of opening roller :rigid aluminium alloy carding plate or carding wire
Working width(mm) | 1000-2000(customized) | |||
capacity (kg/h) | 100-500(can be decreased and increased) | |||
feed roller | Dia.(mm) | 75 | ||
Rotation speed(r/min) | 16 | |||
beater | Dia.(mm) | 420 | ||
Rotation speed(r/min) | 900 | |||
installed power | 6.95KW | |||
dimensions | 4500x1800x1000 | |||
net weight | 0.8T |
Pre-Sales Service
*Inquiry and consulting support
*Sample testing support
*View our factory
After-Sales Service
*Training how to install the machine , training how to use the machine
*Engineers available to service machinery overseas
*Warranty :12 months
*Certificate : ISO9001 CE
Trade information
*Payment terms : 30%deposite by TT,LC , Western union ,Moneygram
70% as balance paid before delivery LC
*Delivrey time :Appox 7 working days after receiving the rest payment
*Package : nake ,wooden case
*Warrantty:12 months
*After sales service :we will send 2-3 workers to do the installation and commissioning
of the line at the request of the buyer . and the buyer should provide round-trip air plane
tickets ,accommodation and allowance , the allowance is 70USD /person/day
*HS code :84490090
*MOQ: 1set
Certificate :
Exhibition :
Agent :
Contact Person: Ms. Rainbow Li
Tel: +8615262513303
Fax: 86-0512-5286-0355
Address: No.11 Kaicheng Road ZhiTang Town ChangShu City JiangSu Province China
Factory Address:No.11 Kaicheng Road ZhiTang Town ChangShu City JiangSu Province China
