| Place of Origin: | China |
| Brand Name: | HONGE |
| Certification: | CE/ISO 9001 |
| Model Number: | HYSL-230 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden package or PE film or naked |
| Delivery Time: | 15 working days after received your payment |
| Payment Terms: | T/T, L/C, |
| Supply Ability: | 1 set 60 days |
| Name: | Carding Machine | Structure: | Single Cylinder And Double Doffer |
|---|---|---|---|
| Working Width: | 2300mm | Carding Points: | 5 Units |
| Main Cylinder: | 1230mm | Working Roller: | 165mm |
| Stripping Roller: | 78mm | Anti-metal Protection: | Including |
| Automatic Stop Alarm: | Including | Dust Removing System: | Including |
| Highlight: | 2.3m Width nonwoven carding machine,Single Cylinder nonwoven carding machine,Double Doffer nonwoven carding machine |
||
HONGE High Speed Nonwoven Machine Carding Machine Single Cylinder Double Doffer
Product Details:
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HongYi |
| Certification: | CE /ISO9001 |
| Model Number: | HYSL-230 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Naked or Wooden case or PE film |
| Delivery Time: | 7 days after receiving the balance |
| Payment Terms: | T/T, L/C, |
| Supply Ability: | 1 set 60 days |
Description
| Productivity: | 100-600M/MIN | Machine Type: | Single Cylinder Double Doffer |
| Speed: | Max. 70m/min | High Light: | Nonwoven Carding Machine, 600m/min Nonwoven Carding Machine |
| Production Rate: | 600m/min | Width: | 2300mm |
| Advantage: | High Production Capacity |
| Effective Width(mm) | 2300 | |
| Max. Output(kg/h) | 750 | |
| Max. Speed (m/min) | 100 | |
| Structure | Single cylinder and double doffer | |
| Carding Unit | Dia. of working roller,stripping roller | 165mm,78mm |
| No. of carding groups | 5 units | |
| Main cylinder | Dia. of Sub- Cylinder (mm) | 1230mm |
| No. of working roller (groups) | Single | |
Structure
1. Horizontal feeding lattice is PVC lattice, with pressing roller for evenly feeding.
2. Four rollers for feeding with diameter 90mm, anti-metal protection device is used at the input part of the machine, which could test the metal and has auto-stop warning.
3. There are five suits of working roller and stripping roller on main cylinder to card fiber completely and form web evenly.
4. Edge-suction system is equipped and the dust particles will be transferred to special dust cage.
5. Walking platforms are placed on two sides of machine for maintenance.
6. Machine safe guard cover is transparent organic glass.
| item | value |
| Marketing Type | New Product 2024 |
| Automatic Grade | Full-automatic |
| Voltage | 380/220V |
| Power | 40kw |
| Certification | CE/ ISO9001 |
| Working width | Max.2300mm |
| Production Capacity | 800kg/h |
| Diameter of cylinder | 1230mm |
| Suitable fiber | 1.5D-15D*38mm-64mm |
| Output speed | Maximum 70m/min |
• Product: soft wadding
• Product net width : up to 2300mm(or wider dependent on individual requirement
• Product weight:60-1500g/m2
• Product thickness :3-200mm
Pre-Sales Service
* Inquiry and consulting support
* Sample testing support
* View our factory
After-Sales Service
* Training how to install the machine , training how to use the machine
* Engineers available to service machinery overseas
* Warranty :12 months
* Certificate : ISO9001 CE
Trade information
* Payment terms: 30%deposite by TT, LC , Western Union ,Moneygram 70% as balance paid before delivery LC
* Delivery time: Approx 7 working days after receiving the rest payment
* Package: make, wooden case
* Warrantty:12 months
* After-sales service: we will send 2-3 workers to do the installation and commissioning of the line at the request of the buyer . and the buyer should provide round-trip airplane tickets , accommodation, and allowance, the allowance is 70USD /person/day
* HS code:84490090
* MOQ: 1set
Tag: fiber carding machine, textile carding machine, polyester fiber carding machine
Certificate :

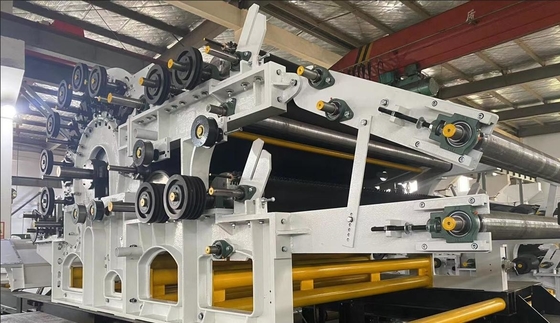

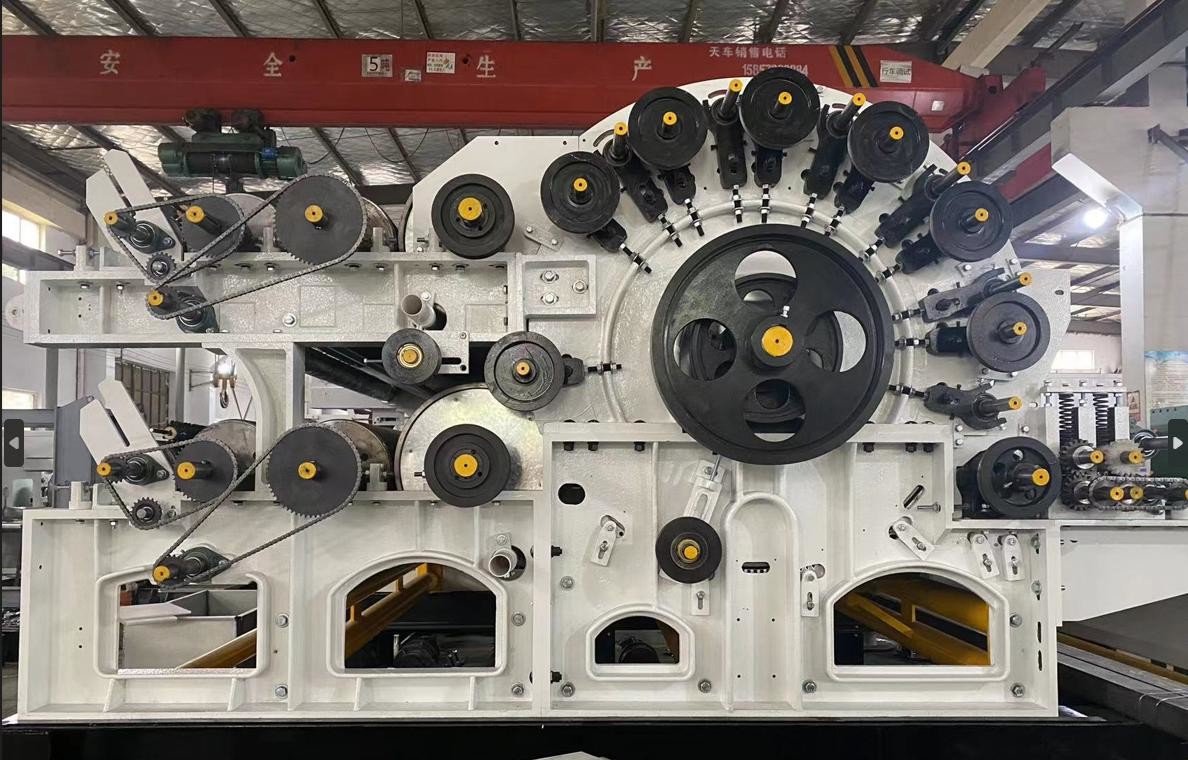

real photos:
