| Place of Origin: | China |
| Brand Name: | HongYi |
| Certification: | ISO9001/CE |
| Model Number: | 650HYZCJ |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton firstly,and then reinforced with wooden case for outer packing |
| Delivery Time: | 10 working days after received your payment |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 3set /month |
| Working Width: | 8800mm | Needle Density: | 4000-7000n/m |
|---|---|---|---|
| Needle Srtoke: | 30mm, 40mm, 50mm | Needle Frequency: | 600r/min-1200r/min |
| Highlight: | Nonwoven Needle Punching Machine,Needle Punching Carpet Production Line,1200 r/min Needle Punching Machine |
||

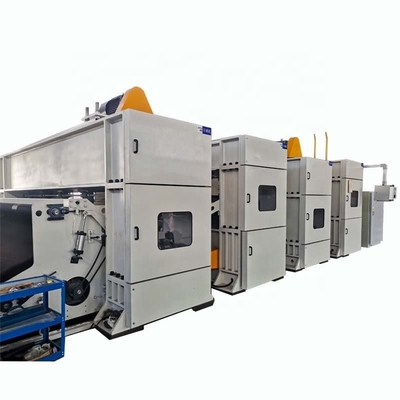

Nonwoven Machine Needle Punching Carpet Production Line Carpet Making Machine
Needle punching technology process is the very common and prevailing process in the nonwoven industrial. With diverse machine combination and designs, needle punch production line is applicable for producing various felt, carpet, geotextile, shoe lining, filtration material, substrate layer for synthetic leather and asphalt felt, and other hundreds of innovative nonwoven products.
Our quality and warranty :
1. Selected component suppliers: SIEMENS, INA, TWB and etc.
2. TQM for each production procedure
3. Turnkey project : installation and commissioning
4. Spare parts in one-stop solution
5. One year warranty period
Function
Used for reinforcing and surface finishing of the nonwoven fabrics
Main specifications
Working width:2200-8000mm
Needle density :5000-8000n/m*2boards
Needle stroke :25-50mm
Needle frequency :800-1200r/m
Needle type :double shafts,double boards,up/down stroke
Structure
Crank case complete with a vertical balance system
Central oil lubrication circulation and cooling system complete with pressure and temperature alarm systems
Magnesium alloy/PU combined needle board locked firmly by lock-bolt or air tube;multi random computer needling methods for needle board
Chrome plate delivery rollers with carved or patterned surface
Auto top dead center controlled stop
Certificate
Exhibition
