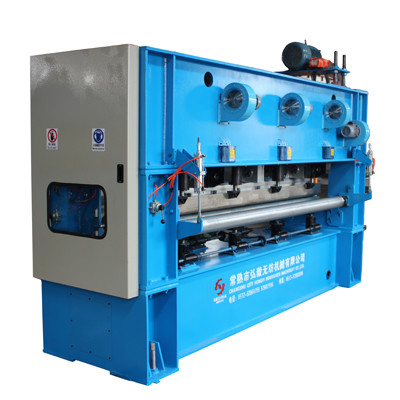

3800mm High speed non woven Textile Needle Punching Machine for felt

3800mm High speed non woven Textile Needle Punching Machine for felt

  • 3800mm High speed non woven Textile Needle Punching Machine for felt
  • 3800mm High speed non woven Textile Needle Punching Machine for felt
  • 3800mm High speed non woven Textile Needle Punching Machine for felt
  • 3800mm High speed non woven Textile Needle Punching Machine for felt
3800mm High speed non woven Textile Needle Punching Machine for felt
Product Details:
Place of Origin: china
Brand Name: hongyi
Certification: ce/iso
Model Number: 5000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: nude or wooden case
Delivery Time: 60 working days after receving the deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1 set 15 days
Contact Now
Detailed Product Description
Raw Material: Pp,pe Ect Width: 2500mm-8800mm
Needle Frequency: 1200rpm Strok: 30-70mm
Board: Single, Double Shaft: Single,double
Board Type: U Model Oil Box: Big Oil Box Or Small
Needle Density: 3000n/m-7000n/m
High Light:

Fabric Punching Machine

,

Automatic Punching Machine

High speed non woven Textile Needle Punching Machine for felt



Function And Characteristics Of Needle Punching Machine

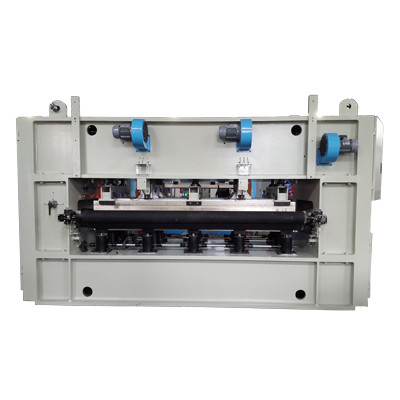

3800mm High speed non woven Textile Needle Punching Machine for felt 0

  • Used for pre-punching and reinforcing the web;
  • The single board up punching or down punching can be selected accoeding to individual needling system;
  • The lower needle density is for the primary needling treatment of fiber web;
  • As one main unite in needle punching industry line , this machine is designed for needling fiber web (fineness 1.5-9d, length of 76mm or less polyester, nylon, polypropylene, viscose, sea-island fiber and other chemical fiber, cotton fiber ) so as to reinforce and form non woven fabric with a certain of strength. This machine is also used for main needling, and pre needling and surface finishing, application as leather substrate, filter material and geo textile, automative interiors and so on.

Electric control operation system

1. the frequency convertor technology is adopted , and stroke frequency and web-in or web-out speed can be adjusted by stepless according to the production technology, the stripping plate and stitching plate can be moved up and down online automatically.

2. PLC centralized control and flexible, convenient, and reliable process adjustment.

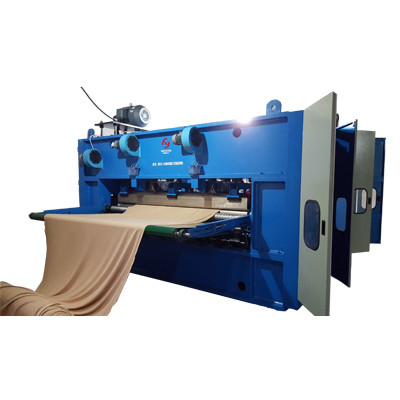

3800mm High speed non woven Textile Needle Punching Machine for felt 1

Main specifications

Working width  (2500-8800)mm
Needle density (3000-7000)n/m
Needle stroke (30-70)mm
Needle frequency (800-1200)r/min
Needling type single shaft single board, double shaft single board, double shaft double board
Needle plate High-strength aluminum alloy
Type of holes Diameter 1.83mm/ an inverted cone
The control mode Constant power and inverter control
Line speed 1-10m/min
Installed power 22kw-50kw
Weight 5500kg-15000kgs, depending on the machine width





Trade Information

1. Payment terms: 30% as deposit by T/T; 70% as balance paid before delivery by T/T or L/C.

2. Lead time: 60 working days upon receipt of down payment.

3. Package: Naked or wooden cases.

4. Warranty: 12 months.

5. After-sale service: The seller will arrange 2-3 engineers to do the installation and commissioning of the line at the request of the buyer. And the buyer should provide round-trip air plane tickets, accomodation and allowance. The allowance is usd150 for one engineer per day.

6. HS code: 84490090





Our service



Pre-Sales Service



* Inquiry and consulting support.

* Sample testing support.

* View our Factory.



After-Sales Service



* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.



Package



Nude packing, wooden case is optional.

Wodden case packing: Carding machine, lapper and electric boxes wooden case packaged. Other machines nude packaging.

Any damage in transport of machines is not duty of the seller.





COMPANY INFORMATION

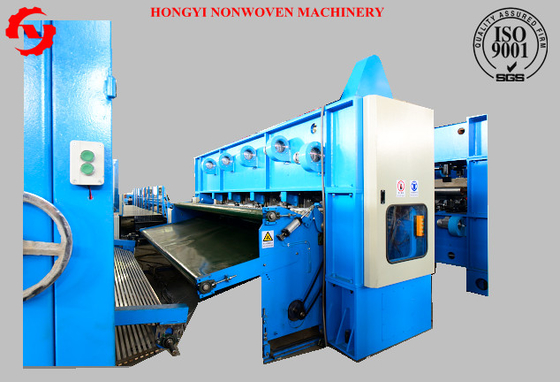

3800mm High speed non woven Textile Needle Punching Machine for felt 2

We are Changshu HongYi Nonwoven Machinery CO.LTD. , more than 20 years experience in china. We have about 100 workers and 5000m2 workshop. Occupied more than 10% market share in Chinese nonwoven machinery market.
Until now, we have established more than 20 series of nonwoven machinery all over the country and also expand our business scope abroad, up to date, we have exported production line to Southeast Asia, Europe, South America and Austria, etc.
We are applying for the certificate of ISO 9001 and CE.
Below are the main kinds of our products, from which you may acquaint yourselves with some of items we handle:
1) wasted cloth recycled production line
2) needle punched felt production line
3) 100% cotton fabric production line
4) geotextile productiobn line
5) synthetic leather substrate production line
6) carpet production line
7) Automotive interior production line
8) PET soundproof panels production line
9) Thermal bonding wadding production line
10) Hard wadding production line

11) Meltblown fabric making machine

12) Spunbond nonwovens production line
