| Place of Origin: | CHINA |
| Brand Name: | Hongyi |
| Certification: | CE/ISO9001 |
| Model Number: | 200 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude or wooden case |
| Delivery Time: | 15days after receiving deposite |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1 set 7day |
| MATERIAL: | PP.PE ECT | WIDTH: | 2M |
|---|---|---|---|
| Capacity: | 400kg/h | ||
| High Light: | Industrial Wool Nonwoven Carding Machine,400 kg/h Nonwoven Carding Machine,Wool Felt Nonwoven Carding Machine |
||

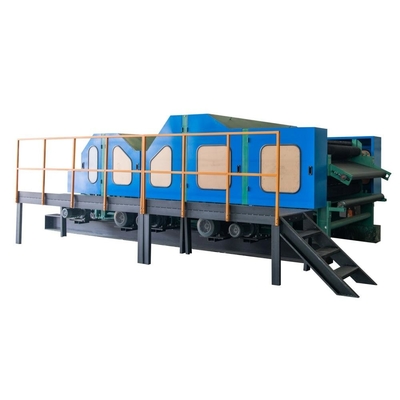

Industrial Wool Nonwoven Carding Machine For Wool Felt
Main Applications
1. Hometextile. Polyester mattress, Polyfibre Cushions, Fibrefill wadding Quilts, Polyfill Pillows,Poly fill Bed protectors, Potholders,outdoor sleep bag, Polyfill Gloves.
2. Garment fillings. Polywadding Duvets, Fibrefill wadding Outwears, Coats, Polyfill Jacket, Sleeping bags
3. Insulation. Thermo-insulation, automotive insulation, acoustic insulation.
4. Filtration. Poly Air filtration
5. Others.
| Working width | 2500mm(adjustable from 1500-2500mm) |
| Breast Cylinder Dia. | 550mm |
| Main Cylinder Dia. | 1500mm |
| Output speed | 15-60m/min |
| Capacity | 200-450kg/h |
| Cylinder&Doffer | double cylinder,double doffer |
| Web | 2webs,20-80gsm |
| Main Components | The main frame material is cast iron, the main cylinder material is cast irom,the rest rollers made by steel tube.Suck unit to clear the raw edges of the webs. |
| Application | Various kindls of fiber such as polyester, viscose, nylon, pp, fiberglas, flax & jute, ect. |
1. Feeding mode: Feeding by an upper feeding board, which can reduce the damage to the fiber, also it is with graduation to show the distance and can be manually adjusted
2. Driving mode: Driven by timing belts to improve the transmission accuracy
3. Suction mode: Advanced air suction system with dust bags to ensure no fibers flying out both sides of the machine
4. Width of the output: Almost equal to the width of the equipment, increase 10% capacity
5. Speed:100m/min
Application: this machine is used for opening , carding all grades of cotton,cotton-type fiber and medium-length chemical fiber less than 76mm, and forming uniform fiber web
Principle: fiber is fed to feed conveyor from front feed equipment (such as pneumatic tuft feeder )and form thicker fiber web , then flocks is fed to breast cylinder by feed roller and taker-in , then transferred to main cylinder by transfer roller .8pairs carding units (worker rollers and stripper roller )are equipped on breast cylinder and main cylinder for opening and carding fiber , fiber which on the main cylinder is stripped onto upper and lower web-out conveyor by stripping roller after passing doff and condenser roller ,forming uniform web and feed to next machine
