| Place of Origin: | CHINA |
| Brand Name: | HONGYI |
| Certification: | CE/ISO9001 |
| Model Number: | HYSL |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD65000-90000 per set |
| Packaging Details: | nude or wooden cases. |
| Delivery Time: | 90-100 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2 sets per three months |
| Working Width: | 2500mm | Speed: | 60m/min |
|---|---|---|---|
| Mesh Wire: | Geron | Dia. Of Cylinder: | 1230mm, 850mm |
| Automatic Grade: | Automatic | Warranty: | 1 Year |
| Certification: | CE Certificate | ||
| Highlight: | 2500mm Polyester Carding Machine,Polyester Carding Machine For Wadding,60m/min Polyester Carding Machine |
||

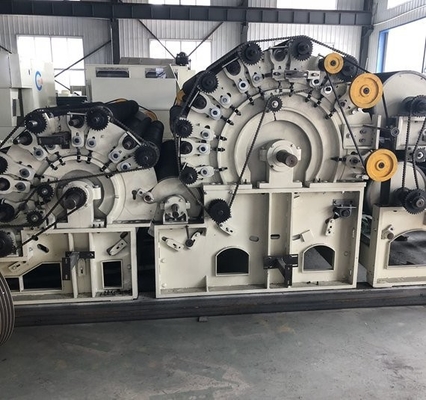

Application: this machine is used for opening, carding all grades of cotton, cotton-type fiber and medium length chemical fiber less than 76mm, and forming uniform fiber web.
Principle: fiber is fed to feed conveyor from front feed equipment (such as pneumatic tuft feeder )and form thicker fiber web, then flocks is fed to breast cylinder by feed roller and taker-in, then transferred to main cylinder by transfer roller. 9 pairs carding units (worker rollers and stripper roller )are equipped on breast cylinder and main cylinder for opening and carding fiber, fiber which on the main cylinder is stripped onto upper and lower web-out conveyor by stripping roller after passing doff and condenser roller ,forming uniform web and feed to next machine.
Main technical parameters:
Working width: 2500mm
Machine structure: double cylinder, double doffer
Suitable material: 3D-15D*38mm-72mm PET, PP fiber, wool, low melt fiber, etc.
Working speed: 60m/min
Capacity: 800kg/h
Trade information:
After-sale service:
Engineers available to service machinery overseas, Video technical support, Online support, Field installation, commissioning and training
Certificate:
