Hard Mattress Dryer Oven Machine With Controllable Height 3x12m

Hard Mattress Dryer Oven Machine With Controllable Height 3x12m

Hard Mattress Dryer Oven Machine With Controllable Height 3x12m
Hard Mattress Dryer Oven Machine With Controllable Height 3x12m
Hard Mattress Dryer Oven Machine With Controllable Height 3x12m
Product Details:
Place of Origin: China
Brand Name: HongYi
Certification: ISO9001/CE
Model Number: HYHX
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 10 working days after received your payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2 sets per month
Contact Now
Detailed Product Description
Product Name: Oven Width: 3000-12000mm
Temp.: 220c
Highlight:

Industrial Drying Oven

,

Electric Drying Oven



Changshu CE/ISO9001 3x12m DRYING OVEN FOR SOFT MATTRESS WITHOUT GLUE





Specifications:

Frame width :1700-2500mm

Capacity :500kg/h

Installed power :9.3kw

Self-carried reserve chute with controllable height

Inverter controlled output device and adjustable output speed

Adjustable output thickness ranging from 80-150mm according to productivity

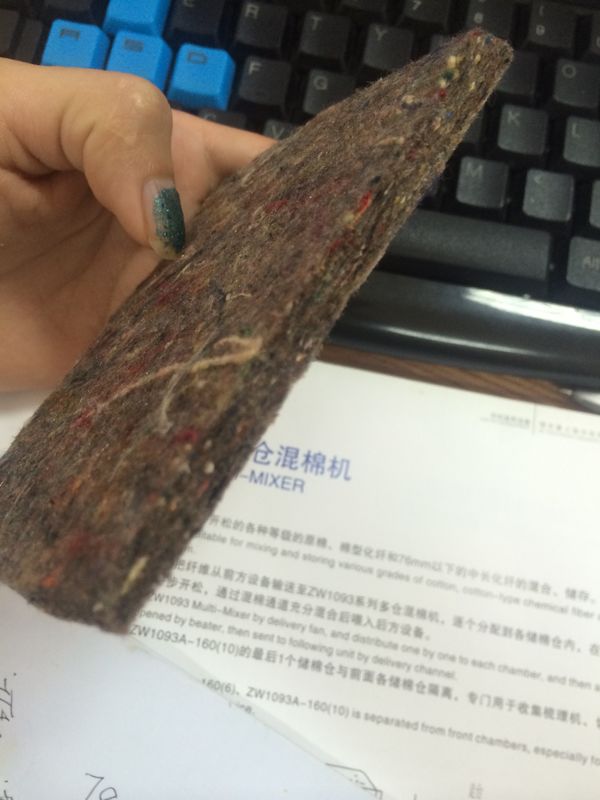

The machine is used to process the batt of fiber to obtain a hard and thick thermal-bonding wadding.The low melt fiber will combine other fibers together through hot air penetration and colling system for reinforcement.

Main specifications

Working width ≤5000mm

Product weight (60-1500)gram/㎡

Product thickness (3-200)mm

Surface temp. ≤220℃

Heating method hot oil circulation, electricity heating, direct burning

Oven working width 6.0m 8.0m 10m

Structure

-Single layer,single belt or double-belt structure

-Up and down belts hold the web for entering to get heated and formed.

-High temperrature resistance TEFLON belt with auto correction device.

-Main drive and fan inverter controlling.
