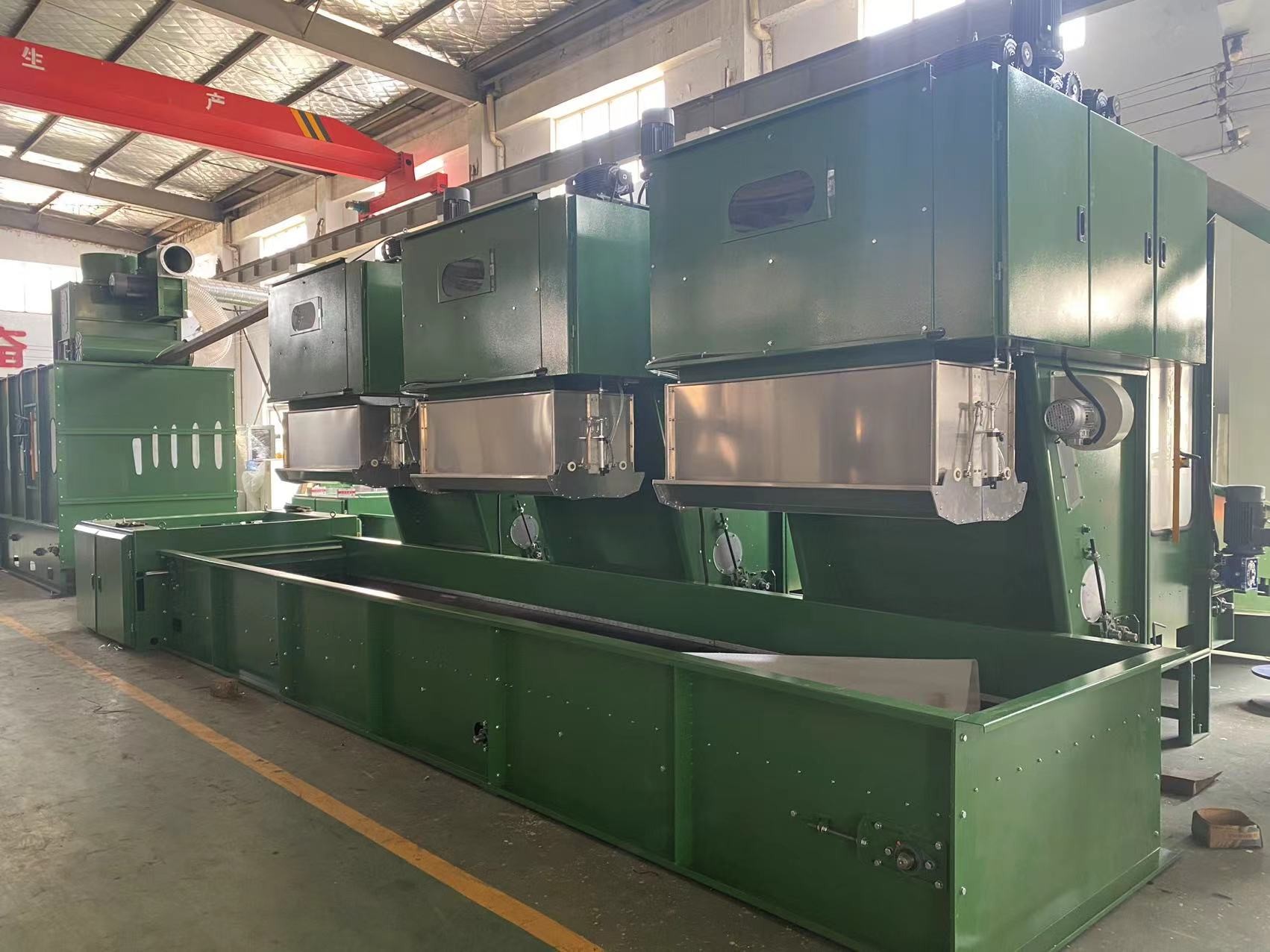

2024 New Type HYYS-150 1500mm Opening Machine / Pre Opener

2024 New Type HYYS-150 1500mm Opening Machine / Pre Opener

2024 New Type HYYS-150 1500mm  Opening Machine / Pre Opener
2024 New Type HYYS-150 1500mm  Opening Machine / Pre Opener
2024 New Type HYYS-150 1500mm  Opening Machine / Pre Opener
Product Details:
Place of Origin: China
Brand Name: HONGE
Certification: ISO9001/CE
Model Number: HYYS-150
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package or PET film or naked
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 2 set per month
Contact Now
Detailed Product Description
Product Name: Opening Machine/Pre-opner Working Width: Max. 1500mm
Capacity: Max. 250kg/h/set Raw Material: PET,PP,low Melt Fiber,waste Fiber .etc
Conveying Belt Speed: ≤12m/min Detail: Equipped With Strong Magnet
Conveying Belt Length: According To Amount Of Bale Opener Advantage: Modular Design,easy Installation
Highlight:

1500mm Pre Opener

,

Pre Opener Opening Machine

,

Pre Opening Machine

ISO9001 Nonwoven automatic carbon fiber opener bale opening machine polyester fiber opening machine



Function and characteristics of Bale opener

Open and blend the fibers prior to the next processes

There are several options for the opener depended on the fibers to be used

These options are :1.toothed,2.pin plate opener or3. Wired opener

A plate magnet is included for metal extraction. Alarm and reverse running when jammed



Structure of

Intergrated numerical control machining of bending frame work for stability

Even feeding by holding method

Strong magnet for sucking metal dusts

Structure of opening roller :rigid aluminium alloy carding plate or carding wire

Working width(mm) 1000-2000(customized)
 capacity (kg/h) 100-500(can be decreased and increased)
 feed roller  Dia.(mm) 75
   Rotation speed(r/min) 16
 beater  Dia.(mm) 420
   Rotation speed(r/min) 900
 installed power 6.95KW
dimensions 4500x1800x1000
 net weight 0.8T





Pre-Sales Service
*Inquiry and consulting support
*Sample testing support
*View our factory


After-Sales Service
*Training how to install the machine , training how to use the machine
*Engineers available to service machinery overseas
*Warranty :12 months
*Certificate : ISO9001 CE

2024 New Type HYYS-150 1500mm  Opening Machine / Pre Opener 0
Trade information
*Payment terms : 30%deposite by TT,LC , Western union ,Moneygram
70% as balance paid before delivery LC
*Delivrey time :Appox 7 working days after receiving the rest payment
*Package : nake ,wooden case
*Warrantty:12 months
*After sales service :we will send 2-3 workers to do the installation and commissioning
of the line at the request of the buyer . and the buyer should provide round-trip air plane
tickets ,accommodation and allowance , the allowance is 70USD /person/day
*HS code :84490090
*MOQ: 1set
