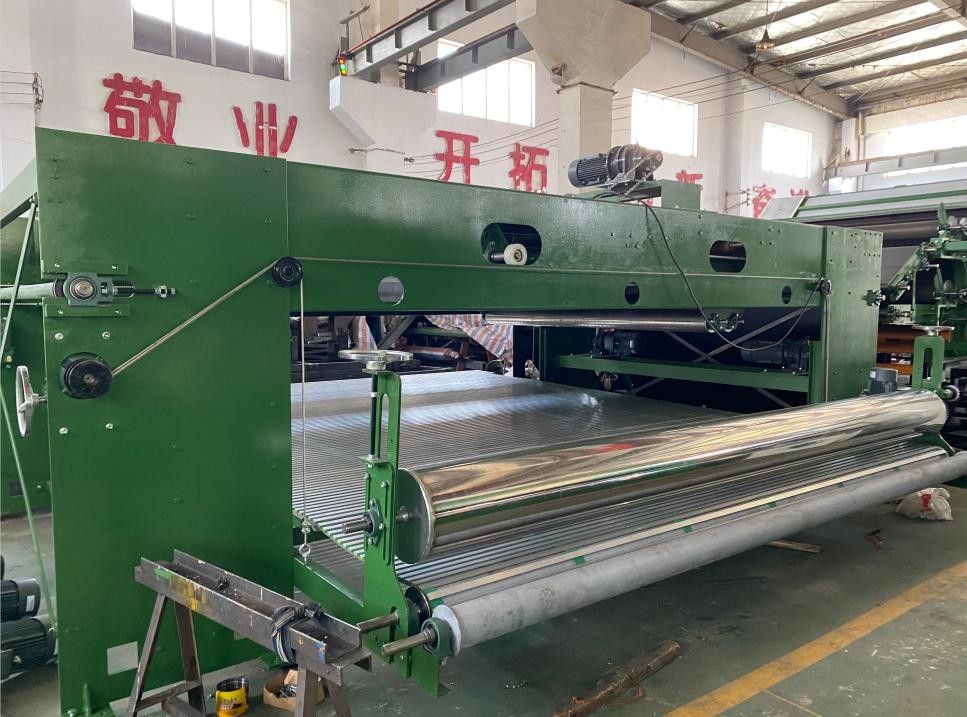

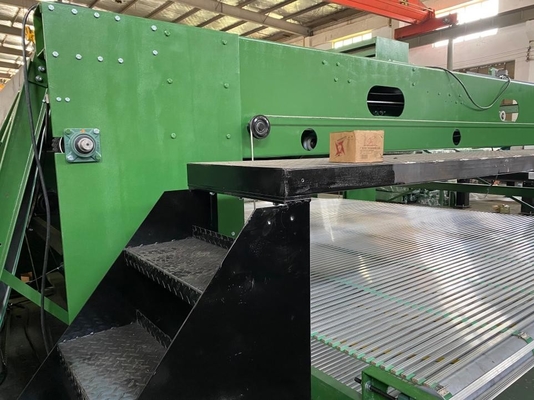

2024 New Type HYPW-400 Cross Lapper Machine

2024 New Type HYPW-400 Cross Lapper Machine

  • 2024 New Type HYPW-400 Cross Lapper Machine
  • 2024 New Type HYPW-400 Cross Lapper Machine
2024 New Type HYPW-400 Cross Lapper Machine
Product Details:
Place of Origin: CHINA
Brand Name: HONGE
Certification: CE/ISO9001
Model Number: HYPW-400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package or PE film or naked
Delivery Time: 100 days.
Payment Terms: L/C, T/T
Supply Ability: 3-5 sets per 90 days.
Contact Now
Detailed Product Description
Inputting Width: 2500mm Outputting Width: 4000mm
Conveying Belt: Aluminum Alloy Belt Bottom Belt: Aluminum Alloy Belt
Feeding System: Segmented Speed Regulation And Compensation Machine Frame Material: Q235A Armor Plate
Usage: Used To Flod Evenly And Lapped Fiber Web Into Certainty Thickness And Width
High Light:

HYPW-400 Cross Lapper Machine


2024 Cross Lapper Machine

Non-woven Fabric Making Machine Polyester Fiber Cross Lapper Machine


Thermal bonding production line is applicable for producing a variety of products like mattress, wadding, insulation material, thick felt and etc. Some low melt fiber like PET or PP are mixed as binder.


1. Whole production line frequency conversion ,the running speed is adjustable,easy operation, According to customer demands,adopt different configurations,The finished products are mainly used for winter quilt, summer quilt and other
2. Automatic Polyester Wadding Production And Filling Into Quilt Cover
3. Opening machine + Feeding Machine + Carding Machine + Cross Lapper + Breaking Machine + Quilt Filling Machine (Oven Is Optional)
4. Wadding Weight From 40GSM To 1200GSM
5. Product Width 2000-3200MM
6. Wadding Length Can Be Any
7. Filling Speed : 20-25S/PC
8. Frequency Conversion Speed Regulation of The Whole Production Line
9. One Quilt Filling Line Can meet 3-5 Sets Single Needle Quilting Machine


Product name Cross Lapper
Pressure 220V/380V
Power 24~48kw
Size 2500*3000*1450mm
Weight 4000KG




The machine is used to fold evenly and lapped the fiber webs into certain width and thickness, which is for next working procedure.


Main specifications


Input apron width Matched with the working width of carding machine.
Out-put apron width 2200~8800mm

Lapping speed

max. 70m/min
Product evenness CV≤4%


2024 New Type HYPW-400 Cross Lapper Machine 0

Structure and characteristics:

  • The machine adopts advanced servo motor drive and utilizes special servo motion control linkage system.
  • The machine has the function of transverse profile for a good evenness in cross direction.
  • The machine uses lifetime anti-static light weight lattice transmission system with good lateral stiffness and high conductivity.
  • Each lattice driving roller is seamless steel, and specially strengthened at the ends of axletree.
  • Cross lapping and Reciprocating is subsection controlled accurately.
  • Double belt pressing roller lattice is equipped at the output of the cross lapper.


After-sale service


a. Installation and commissioning at customers' site.

b. Engineers available to serivce machinery overseas.

c. Training how to operate the machine for workers.

d. Online technical support for all the time.

e. Provide spare parts


2024 New Type HYPW-400 Cross Lapper Machine 1
