| Place of Origin: | CHINA |
| Brand Name: | HONGYI |
| Certification: | CE/ISO9001 |
| Model Number: | HYPW |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD55000 per set |
| Packaging Details: | Nude or Film. |
| Delivery Time: | 90days. |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3-5sets per 90 days. |
| Input Width: | 2700mm | Out-put Width: | 8800mm |
|---|---|---|---|
| Lapping Speed: | 70m/min | Lapping Belt: | Carbon Belt |
| High Light: | NonWoven Cross Lapper,2700mm PET Cross Lapper Machine,Cross Lapper For Carpet |
||

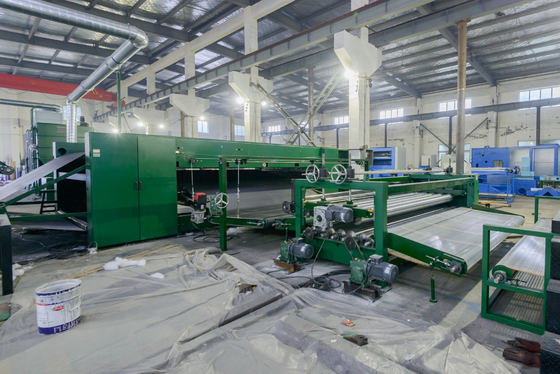

HONGYI High speed non woven cross lapper for carpet
Function
Convert the fiber sheet to the overlapped form. With the ability to adjust the thickness, weight and evenness of end product. It’s used for the productions of needle punching, thermal bonding, spunlace, etc.
Main technical parameters
Input width: ≤2700mm
Output width: ≤9000mm
Lapping speed: ≤70m/min
Structures
1. Synchronous and frequency conversion control with position switch.
2. Each lapping belt driven by independent transmission.
3. Clamping infeed lattice with anti-static apron, steady reciprocated carrier.
4. Easy operation and maintenance;
5. Anti-static PVC lattices are for transferring, cross lapping and compensating. Bottom lattice is wooden lattice.
6. Double belt pressing roller lattice is equipped at the output of the cross lapper.
Trading information
| Trade terms | FOB Shanghai |
| Lead time | 100 days |
| Payment term | 30% T/T advance, 70% will be paid off before delivery. |
| Warranty | 1 year. |
| Installation and debugging | The seller will arrange 2-3 engineers for installation and debugging. The buyer will be responsible for round toickets, accomdation, transportation, insurance and other relative items for engineers. The charge for engineers will be USD180 per day per person. |
After-sale service
Online support, Spare parts, Installation and debugging, one year warranty
