|Place of Origin:
|Minimum Order Quantity:
|USD20000 per set
|Nude or wooden cases.
|3-5 sets per 90 days.
|3D-15D*51mm-64mm PET, PP Fiber, Low Melt Fiber, Etc.
|PLC And Touch Screen
nonwoven Polyester cross lapper Machine,
PLC touch screen cross lapper,
Cross Lapper With Servo Motors

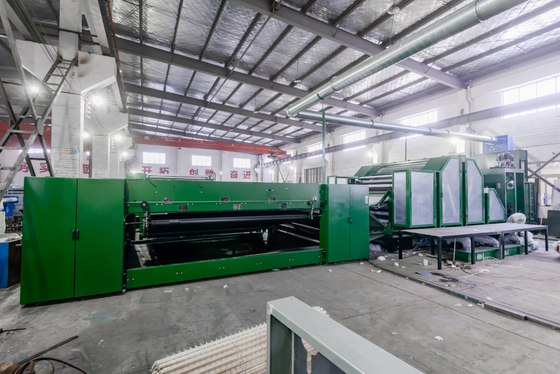

Product name: 70m/Min Non Woven Cross lapper machine with servo motors
The machine is used to fold evenly and lapped the fiber webs into certain width and thickness, which is for next working procedure.
Main techinical parameters:
Input apron width: 2000-2700mm
Out-put apron width: 2500-8800mm
Lapping speed: max. 70m/min
Line speed: 1-15m/min
Belts are light weight carbon belt
a. Machine frame is 8mm thickness armor plate assembled with brace.
b. Anti-static PVC lattices are for transferring, cross lapping and compensating. Bottom lattice is wooden lattice.
c. Each lattice driving roller is seamless steel, and specially strengthened at the ends of axletree.
d. Cross lapping and Reciprocating is subsection controlled accurately.
e. Reciprocating adopt synchronous belt for drive.
f. Double belt pressing roller lattice is equipped at the output of the cross lapper.
|30% advance payment by T/T, 70% as balance paid off before delivery.
|Naked or wooden cases.
The Seller gives a mechanical warranty for all machine parts except from the wearing parts and the problem caused by wrong operation and other man-made factors; the respective warranty period shall be twelve (12) months after mechanical and electrical commissioning. However, in any case the total warranty period shall not exceed fourteen (14) months after the shipment date (date of shipping document). Unless the mechanical and electrical commissioning is delayed for reasons solely attributable to the Seller. Condition for the effectiveness of the warranty is a proper storage after shipment, proper erection and commissioning/start-up, and safe effective storage in case of any delays between erection and commissioning.
|Installation and commissioning
The seller is responsible for installation and debugging. The buyer is responsible for the round-trip airplane tickets, accommodation, medical treatment, safety and relative fees. In addition the buyers should assign translator, workers, electrical cable (from machines to control panel and from power to control panel) and tools for installation to cooperate with the work. Installation cost is USD180/Day/engineer.
*Inquiry and consulting support
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*Nude packing ,buye, wooden case is optional.
*Woddencase packing:Carding machine, lapper and electric boxes wooden case packaged. Other machines nude packaging.
*Any damage in transport of machines is not duty of the seller.
