1000kg/h Air Laid+thermal Bonding Nonwoven Shoddy Felt making machine

1000kg/h Air Laid+thermal Bonding Nonwoven Shoddy Felt making machine

1000kg/h Air Laid+thermal Bonding Nonwoven Shoddy Felt making machine
1000kg/h Air Laid+thermal Bonding Nonwoven Shoddy Felt making machine
1000kg/h Air Laid+thermal Bonding Nonwoven Shoddy Felt making machine
Product Details:
Place of Origin: China
Brand Name: HONGE
Certification: CE, ISO9001
Model Number: HYL-QLCW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: PE film or wooden boxes.
Delivery Time: 120 days.
Payment Terms: L/C, T/T
Supply Ability: 1-2 lines per 120 days.
Contact Now
Detailed Product Description
Product Name: Airlaid Shoddy Felt Production Line Trim Width: Max. 2800mm
Material: Shoddy Fiber, Polyester Fiber, Low Melt Fiber, Wool, Etc. Weight Range: 500gsm-5000gsm
Capacity: Max. 1000kg/h

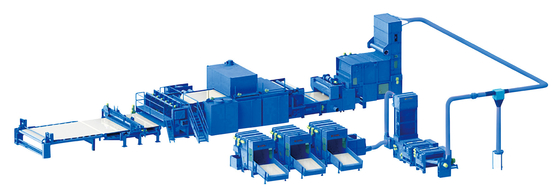

1000kg/h Airlai+thermal bonding technology nonwoven shoddy felt production line





Production line description:

  • This air laid thermal bonding wadding production line uses low melt fiber or bi-component fiber mixed with normal polyester fiber in properties to create stiff waddings, or such as foam replacements for quilts, cushion, mattress, acoustic and insulation materials, etc.
  • Also able to make soft wadding for interlinings such as home textiles, garments, furniture, toys, etc.
  • The material after forming into a batt is passed through a thermal-bonded oven with stainless steel or teflon belt dependent on the products where fitted the top belt is a movable compression belt.
  • However, for soft waddings, eg. lofty material below 1500gram per square meter. It is normal to use Teflon belts for the oven machine.

1000kg/h Air Laid+thermal Bonding Nonwoven Shoddy Felt making machine 0

Technical parameters:

Working width 2600mm
Weight range 500gsm-5000gsm
Raw material 1.5D-15D*38mm-51mm shoddy fiber,polyester fiber, low melt fiber, wool, etc.
Process technology Airlaid+Thermal bonding process
Production capacity max. 1000kg/h
Applications quilts, mattress, furniture, garments, insulation materials, etc.
Installed power Depends.



Trade information:

Trade terms FOB, CNF, or CIF
Lead time 120 days after deposit.
Payment terms 30% advance payment, 70% paid off before delivery.
Warranty twelve (12) months after mechanical and electrical commissioning.
After-sale service The seller is responsible for installation and debugging. The buyer is responsible for the round-trip airplane tickets, accommodation, medical treatment, safety and relative fees. In addition the buyers should assign translator, workers, electrical cable (from machines to control panel and from power to control panel) and tools for installation to cooperate with the work. Installation cost is USD180/Day/engineer and totally installation period is about 30-40 days depending on well cooperation of the buyer.









Products and applications for reference:

1000kg/h Air Laid+thermal Bonding Nonwoven Shoddy Felt making machine 1
