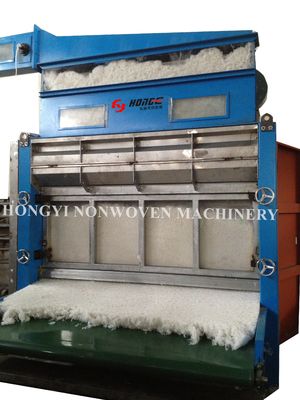

240 Nonwoven Vibrating Hopper Feeder Pneumatic Card Feeding Machine For Fabric

240 Nonwoven Vibrating Hopper Feeder Pneumatic Card Feeding Machine For Fabric

  • 240 Nonwoven Vibrating Hopper Feeder Pneumatic Card Feeding Machine For Fabric
  • 240 Nonwoven Vibrating Hopper Feeder Pneumatic Card Feeding Machine For Fabric
  • 240 Nonwoven Vibrating Hopper Feeder Pneumatic Card Feeding Machine For Fabric
240 Nonwoven Vibrating Hopper Feeder Pneumatic Card Feeding Machine For Fabric
Product Details:
Place of Origin: China
Brand Name: HONGE
Certification: ISO9001/CE
Model Number: HYQY
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Packed with PE films
Delivery Time: 60 working days after deposit
Payment Terms: L/C, T/T
Supply Ability: 2 sets per 2 months
Contact Now
Detailed Product Description
Product Name: Pneumatic Feeder Width: 1700-3500
Capacity: 800kg/h
High Light:

Pneumatic Card Feeding Machine

,

Nonwoven Vibrating Hopper Feeder

,

Vibrating Hopper Feeder For Fabric

240 Non Woven Pneumatic Card Feeding machine for nonwoven fabric



Function:

After opening and blending machine, the fibers are fed into an even layer or batt to feed to the carding machine.

The pressure feeding assures an high accuracy in cross section, and then an homogeneous fiber web formation.
It can be used as a card feeding system or for direct fiber web formation to feed ovens or other bonding systems.
The machine can be equipped with a belt weigher to better control weight in cross and longitudinal direction.

The machine can manage long, short, virgin and recycled fibers.

The pneumatic forming units gives top performances in web cross regulaity. For this reason, it is suitable to feed top performance card machines which require strict tolerances in terms of weight and productivity.

The belt weighing system is a further guarantee for longitudinal stability in term of weight.

240 Nonwoven Vibrating Hopper Feeder Pneumatic Card Feeding Machine For Fabric 0

Characteristics:

1. Upper and bottom chamber with built-in fan by variable speed inverter control. Completely sealed and pressurized air controlled system.

2. Giber feeding by air-flow guiding and the feeding time is adjustable.

3. Highly accurate pneumatic control system with adjustable pressure.

4. Output batt thickness is adjustable as needed.

5. Outfeed rolls controlled by inventer.





Technical parameters:

Working witdth 1700mm-3500mm
Production capacity 300kg/h~1000kg/h
Installed power 7.5kw~30kw



Trade information:

Trade terms EXW, FOB, CFR, CIF
HS code 8449009000
Payment terms 30% deposit, 70% shall be paid off before loading.
Lead time 60 days after deposit.
Warranty 12 months.



Our service:

*Inquiry and consulting support

* Sample testing support.
* View our Factory.

240 Nonwoven Vibrating Hopper Feeder Pneumatic Card Feeding Machine For Fabric 1

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Nude packing ,buye, wooden case is optional.
* Woddencase packing:Carding machine, lapper and electric boxes wooden case packaged. Other machines nude packaging.

* Any damage in transport of machines is not duty of the seller.
