| Place of Origin: | CHINA |
| Brand Name: | HONGYI |
| Certification: | CE/ISO9001 |
| Model Number: | HYPW |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD60000 per set |
| Packaging Details: | Naked or wooden cases. |
| Delivery Time: | 100 days. |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3-5 sets per 90 days. |
| Input Width: | 2000-2700mm | Out-put Width: | 2500-8800mm |
|---|---|---|---|
| Lapping Speed: | 70m/min | Line Speed: | 1-15m/min |
| Suitable Material: | 3D-15D*51mm-64mm PET, PP Fiber, Low Melt Fiber, Etc. | Color: | Customer's Request |
| High Light: | Non Woven cross lapper machine,70m/Min cross lapper machine,steel Cross Lapper |
||

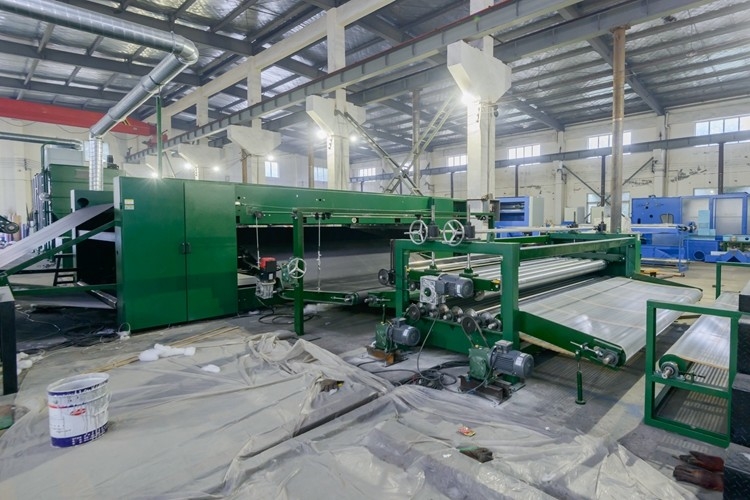

Product name: HongYi-70m/min High Speed Non Woven Anti-static Cross Lapper Machine
Functions
The machine is used to fold evenly and lapped the fiber webs into certain width and thickness, which is for next working procedure.
Main techinical parameters:
Input apron width: 2000-2700mm
Out-put apron width: 2500-8800mm
Lapping speed: max. 70m/min
Line speed: 1-15m/min
Belts are light weight carbon belt
Characteristics:
a. Machine frame is 8mm thick armor plate assembled with a brace.
b. Anti-static PVC lattices are for transferring, cross lapping, and compensating. Bottom lattice is wooden lattice.
c. Each lattice driving roller is seamless steel, and specially strengthened at the ends of axletree.
d. Cross lapping and Reciprocating is subsection controlled accurately.
e. Reciprocating adopt synchronous belt for drive.
f. Double belt pressing roller lattice is equipped at the output of the cross lapper.
Trade information:
| Payment term | 30% advance payment by T/T, 70% as balance paid off before delivery. |
| Lead time | 100 days. |
| Package | Naked or wooden cases. |
| HS code | 84490090 |
| Warranty |
The Seller gives a mechanical warranty for all machine parts except from the wearing parts and the problem caused by wrong operation and other man-made factors; the respective warranty period shall be twelve (12) months after mechanical and electrical commissioning. However, in any case the total warranty period shall not exceed fourteen (14) months after the shipment date (date of shipping document). Unless the mechanical and electrical commissioning is delayed for reasons solely attributable to the Seller. Condition for the effectiveness of the warranty is a proper storage after shipment, proper erection and commissioning/start-up, and safe effective storage in case of any delays between erection and commissioning. |
| Installation and commissioning |
The seller is responsible for installation and debugging. The buyer is responsible for the round-trip airplane tickets, accommodation, medical treatment, safety and relative fees. In addition the buyers should assign translator, workers, electrical cable (from machines to control panel and from power to control panel) and tools for installation to cooperate with the work. Installation cost is USD180/Day/engineer. |
