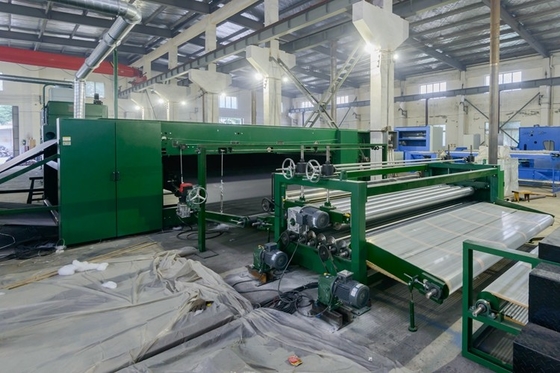

64mm PET Cross Lapper Nonwoven Machinery With Servo Motors

MOQ: 1 set
Price: USD60000 per set
Standard Packaging: Naked or wooden cases.
Delivery Period: 100 days.
Payment Method: L/C, T/T
Supply Capacity: 3-5 sets per 90 days.
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
HONGYI
Certification
CE/ISO9001
Model Number
HYPW
Input Width:
2000-2700mm
Out-put Width:
2500-8800mm
Lapping Speed:
70m/min
Line Speed:
1-15m/min
Color:
Customer's Request
Suitable Material:
3D-15D*51mm-64mm PET, PP Fiber, Low Melt Fiber, Etc.
Highlight:

cross lapper nonwoven machinery

,

PET cross lapper machinery

,

overlapped nonwoven machinery

Product Description

Product name: HongYi-70m/min High Speed Non Woven Anti-static Cross Lapper Machine



Functions



1. After carding, fiber net is sent to double-belt cross lapper through the non-skid curtain. It will be layered on the down-side curtain, then sent to next equipment by adjustable moving curtain.

2. Convert the fiber sheet to the overlapped form. With the ability to adjust the thickness, weight and evenness of the end product. It is used for the productions of needle punching, thermal bonding and spunlace lines, etc.



64mm PET Cross Lapper Nonwoven Machinery With Servo Motors 0

Main technical parameters



Input apron width: 2000-2700mm

Out-put apron width: 2500-8800mm

Lapping speed: 70m/min

Line speed: 1-15m/min

Electrical control system: PLC & touch screen with servo motors



64mm PET Cross Lapper Nonwoven Machinery With Servo Motors 1



Characteristics:



1. Synchronous and frequency conversion control with position switch.

2. Each lapping belt driven by independent transmission.

3. Clamping infeed lattice with anti-static apron, steady reciprocated carrier.

4. Easy operation and maintenance.



64mm PET Cross Lapper Nonwoven Machinery With Servo Motors 2
