| Place of Origin: | CHINA |
| Brand Name: | HONGYI |
| Certification: | CE/ISO9001 |
| Model Number: | HYPW |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD60000 per set |
| Packaging Details: | Naked or wooden cases. |
| Delivery Time: | 100 days. |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3-5 sets per 90 days. |
| Input Width: | 2000-2700mm | Out-put Width: | 2500-8800mm |
|---|---|---|---|
| Lapping Speed: | 70m/min | Line Speed: | 1-15m/min |
| Color: | Customer's Request | Suitable Material: | 3D-15D*51mm-64mm PET, PP Fiber, Low Melt Fiber, Etc. |
| Highlight: | antistatic cross lapper machine,64mm cross lapper machine,pet cross lapper machine |
||

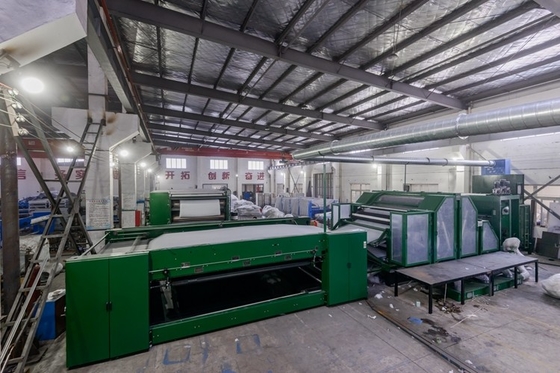

Product name: HongYi-70m/min High Speed Non Woven Anti-static Cross Lapper Machine
Functions
1. After carding, fiber net is sent to double-belt cross lapper through the non-skid curtain. It will be layered on the down-side curtain, then sent to next equipment by adjustable moving curtain.
2. Convert the fiber sheet to the overlapped form. With the ability to adjust the thickness, weight and evenness of the end product. It is used for the productions of needle punching, thermal bonding and spunlace lines, etc.
Main technical parameters
Input apron width: 2000-2700mm
Out-put apron width: 2500-8800mm
Lapping speed: 70m/min
Line speed: 1-15m/min
Electrical control system: PLC & touch screen with servo motors
Characteristics:
1. Synchronous and frequency conversion control with position switch.
2. Each lapping belt driven by independent transmission.
3. Clamping infeed lattice with anti-static apron, steady reciprocated carrier.
4. Easy operation and maintenance.
