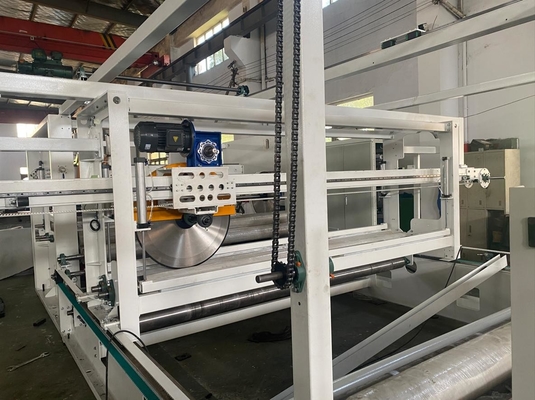

HONGE Nowoven Machine Winding And Cutting Machine for Wadding Line

HONGE Nowoven Machine Winding And Cutting Machine for Wadding Line

  • HONGE  Nowoven Machine Winding And Cutting Machine for Wadding Line
  • HONGE  Nowoven Machine Winding And Cutting Machine for Wadding Line
  • HONGE  Nowoven Machine Winding And Cutting Machine for Wadding Line
  • HONGE  Nowoven Machine Winding And Cutting Machine for Wadding Line
  • HONGE  Nowoven Machine Winding And Cutting Machine for Wadding Line
HONGE  Nowoven Machine Winding And Cutting Machine for Wadding Line
Product Details:
Place of Origin: CHINA
Brand Name: HONGE
Certification: CE /ISO9001
Model Number: HYXT-280
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Wooden package or PE film or naked
Delivery Time: 10 DAYS AFTER RECEIVING THE PAYMENT
Payment Terms: T/T, L/C
Supply Ability: 60 DAYS
Contact Now
Detailed Product Description
Product Namee: Winder And Cutter Working Width: Max.2800mm
Working Speed: 0.5-10 M/min Blade Type: Cross Cutter And Lengthways Cutter
Detail: Photoencoder Control Length, Automatic Length Cutting

HONGE NONWOVEN MACHINE WINDING AND CUTTING MACHINE HYXT-280

Product Details:

Place of Origin:Jiangsu, China
Brand Name:HongYi
Certification:CE/ ISO9001


Payment & Shipping Terms:

Price:$25,000.00/Sets >=1 Sets
Packaging Details:Wooden case or naked or PE film
Supply Ability:1 Set/Sets 60 days


Description:


Features:AutomaticMax. Workable Width::2800mm
Machinery Test Report::CELocal Service Location:None
Showroom Location:NoneVideo Outgoing-inspection:Provided
Machinery Test Report:Not AvailableMarketing Type:Ordinary Product
Warranty Of Core Components:1 YearCore Components:Bearing
Condition:NewApplication:Cutting fabric or wadding
Automatic Grade:AutomaticProduction Capacity:100%
Voltage:380V/220VWorking Width:Max.2.8m
Warranty:1 YearAfter-sales Service Provided:Free Spare Parts, Video Technical Support, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Engineers Available To Service Machinery Overseas
Product Name:Winding And Cutting MachineCutting Power:Approx.5kw
Material Capabilities:Soft Wadding And Stiff Wadding ProductsUsage:To Coil The Soft Wadding In Rolls Or Cut Stiff Wadding Into Sheets.
Working Speed:1-15m/minCutting Type:Cross Cutter And Vertical Cutter
Safety Device:Pre-alarming BellPort:Shanghai
Control System:PLC&touch Screen
High Light:

380V non woven roll cutting machine

,

15m/min non woven roll cutting machine

,

ISO9001 non woven equipment





Automatic WaddingSlitting Machine Cotton Canvas Fabric Nonwoven Roll Binding Strip Cutting Machine



Width:2.8m
Rotating speed of fabric roll0-800rpm/min
Fabric roll diameter300mm(400mm,500mm can also be customized)
Diameter of shaft37mm
Power0.75kw
Blade Power1.5kw
Minimun width of cut strap2mm
Voltage380V/220V optional



Working width2800mm
Working speed1-15m/min
Power7.5kw
Suitable productNeedle punched and thermal bonded product
Motor brandSiemens Beide made in Suzhou
Warranty1 year for main parts
After-sale serviceOnline technical service, free spare parts



Payment terms30% as advance payment by T/T
70% as balance paid off before delivery.
Lead time90 working days after 30% advance payment.
PackageNaked, wooden case or PE film
HS CODE84490090
WarrantyThe Seller gives a mechanical warranty for all machine parts except from the wearing parts and the problem caused by wrong operation and other man-made factors; the respective warranty period shall be twelve (12) months after mechanical and electrical commissioning.
Installation and commissioningThe installation and start-up will be carried out under the supervision of the Seller’s technicians if the Buyer requests. The Buyer is responsible for providing the necessary number of skilled mechanics, helpers and electrician to assist the whole installation and start-up. The Buyer is in charge of providing round-trip air tickets, appropriate local accommodation, meals, and local transportation for the technicians. The Buyer must assign qualified interpreter during the whole installation, start-up and training. Service cost for installation, start-up and training is USD180 per engineer per day.


Pre-Sales Service
*Inquiry and consulting support
*Sample testing support
*View our factory
After-Sales Service
*Training how to install the machine , training how to use the machine
*Engineers available to service machinery overseas
*Warranty :12 months
*Certificate : ISO9001 CE
Trade information
*Payment terms : 30%deposite by TT,LC , Western union ,Moneygram
70% as balance paid before delivery LC
*Delivrey time :Appox 7 working days after receiving the rest payment
*Package : nake ,wooden case
*Warrantty:12 months
*After sales service :we will send 2-3 workers to do the installation and commissioning
of the line at the request of the buyer . and the buyer should provide round-trip air plane
tickets ,accommodation and allowance , the allowance is 70USD /person/day
*HS code :84490090
*MOQ: 1set
