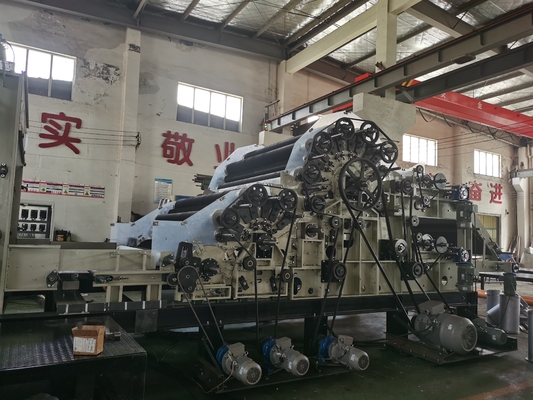

100m/min High Speed Nonwoven Carding Machine for Wool

100m/min High Speed Nonwoven Carding Machine for Wool

  • 100m/min High Speed Nonwoven Carding Machine for Wool
  • 100m/min High Speed Nonwoven Carding Machine for Wool
  • 100m/min High Speed Nonwoven Carding Machine for Wool
100m/min High Speed Nonwoven Carding Machine for Wool
Product Details:
Place of Origin: China
Brand Name: HONGYI
Certification: CE
Model Number: HYSL
Contact Now
Detailed Product Description
Automatic Grade: Automatic Carding Wire: Geron Brand
Color: According To Requirement Cylinder Diamater: 1230mm
Doffer Diamater: 492mm Keywords: Non Woven Card
Material: Stainless Steel Paint: According To Customer Needs
Suitable Material: Polyester, Cotton, Wool, Waste Fiber Warranty: 1 Year
Working Width: 1500mm 1800mm 2000mm 2200mm 2500mm Production Capacity: ≦ 800kg / H

100m/min New design high speed double cylinder nonwoven carding machine for wool



Introduction:



The machine is used to open and card the opened fiber into fiber webs of fixed amount, which will be transferred to next working procedure.

100m/min High Speed Nonwoven Carding Machine for Wool 0

Technical parameters:

Working width 1550-3500mm
Machine type single cylinder double doffer, double doffer double doffer
Diameter of cylinder 1230mm, 850mm
Production capacity max. 800kg/h
Output speed 100m/min





Structure:

  • Horizontal feeding lattice is PVC lattice, with pressing roller for evenly feeding.
  • Four rollers for feeding with diameter φ135mm, anti-metal protection device is used at the material input of machine, which could test the metal and has auto-stop warning.
  • There are 3 suits of working roller and stripping roller on breast cylinder and 5 suits of working roller and stripping roller on main cylinder, totally 8 suits of working zones to card fiber completely and form web evenly.
  • Edge-suction system is equipped and the dust particles will be transferred to special dust cage.
  • Walking platforms are placed on two sides of machine for maintenance. Machine Safe guard cover is transparent organic glass.
  • Carding wire is high quality from GERON.

Trade Information :

*The validity of quotation is one month

* Payment :30%TT deposit , the rest must be paid before shipment by LC or TT

*Customers could inspect the machines and confirm before shipment

*We will send 2-3 engineers to install machines and teach your worker how to run machine well. The buyer shoud provide the visa . Round-trip air tickets, food and accommodation, allowance(150USD/DAY/PERSON).and the other necessary healthy insurance and safely etc.



our service

*Inquiry and consulting support

* Sample testing support.

* View our Factory.



* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.



*Nude packing ,buye, wooden case is optional.

*Woddencase packing:Carding machine, lapper and electric boxes wooden case packaged. Other machines nude packaging.

*Any damage in transport of machines is not duty of the seller.



100m/min High Speed Nonwoven Carding Machine for Wool 1
