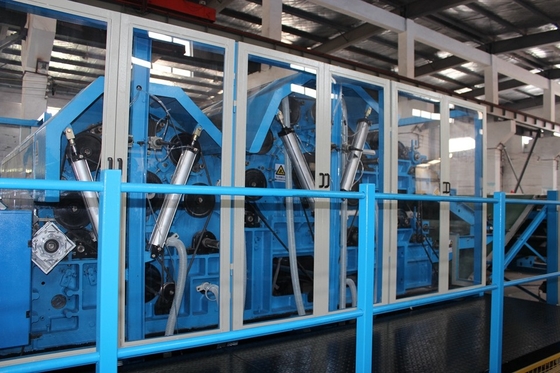

Low Consumption 2m Nonwoven Carding Machine With Single Cylinder And Double Doffer

Low Consumption 2m Nonwoven Carding Machine With Single Cylinder And Double Doffer

Low Consumption 2m Nonwoven Carding Machine With Single Cylinder And Double Doffer
Low Consumption 2m Nonwoven Carding Machine With Single Cylinder And Double Doffer
Low Consumption 2m Nonwoven Carding Machine With Single Cylinder And Double Doffer
Product Details:
Place of Origin: CHINA
Brand Name: HongYi
Certification: CE/ISO9001
Model Number: 200
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: NUDE WOODEN CASE
Delivery Time: 10DAYS AFTER RECEIVED DEPOSITE
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 1 SET 7DAYS
Contact Now
Detailed Product Description
Raw Material: Pp,pe ,cotton Fibre .ect Width: 2000mm
Capacity:: 300kg/h Color: Customized
Brand: GERON
High Light:

Cotton Carding Machine

,

Fiber Carding Machine

CE/ISO9001 2m single cylinder and double doffer Nonwoven Carding Machine for polyester



width :2m

single cylinder :550/850

double doffer :1850/1550





Application : this machine is used for opening ,carding all grades of cotton,cotton-type fiber and medium length chemical fiber less than 76mm,and forming uniform fiber web

principle :fiber is fed to feed conveyor from front feed equipment (such as pneumatic tuft feeder )and form thicker fiber web , then flocks is fed to breast cylinder by feed roller and taker-in , then transferred to main cylinder by transfer roller .8pairs carding units (worker rollers and stripper roller )are equipped on breast cylinder and main cylinder for opening and carding fiber , fiber which on the main cylinder is stripped onto upper and lower web-out conveyor by stripping roller after passing doff and condenser roller ,forming uniform web and feed to next machine







Low Consumption 2m Nonwoven Carding Machine With Single Cylinder And Double Doffer 0

Low Consumption 2m Nonwoven Carding Machine With Single Cylinder And Double Doffer 1

Low Consumption 2m Nonwoven Carding Machine With Single Cylinder And Double Doffer 2

We are Specialized in this field for several years, with the strength of nonwoven machinery and spare part , with good quality and pretty competitive price. We have got CE and ISO9001 .if you have any questions, pls do not hesitate to contact me.
