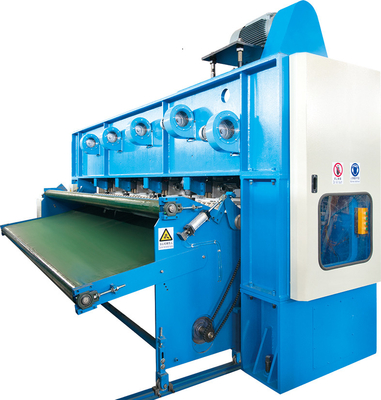

HONGYI-35 - 70mm Stroke Needle Punching Machine High Performance Lower Needle Density

HONGYI-35 - 70mm Stroke Needle Punching Machine High Performance Lower Needle Density

  • HONGYI-35 - 70mm Stroke Needle Punching Machine High Performance Lower Needle Density
  • HONGYI-35 - 70mm Stroke Needle Punching Machine High Performance Lower Needle Density
  • HONGYI-35 - 70mm Stroke Needle Punching Machine High Performance Lower Needle Density
HONGYI-35 - 70mm Stroke Needle Punching Machine High Performance Lower Needle Density
Product Details:
Place of Origin: China
Brand Name: HONGYI
Certification: CE/ISO
Model Number: 6000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: nude or case
Delivery Time: 7days after receving the deposite
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1 set 15days
Contact Now
Detailed Product Description
Raw Material: Pp,pe ,cotton ,jute Ect Width: 6000mm
Needle Frequency: 750rpm Strok: 35-70mm
Board: Single , Double Shaft: Single ,double
Board Type: U Model Oil Box: Big Oil Box Or Small
High Light:

Fabric Punching Machine

,

Automatic Punching Machine

6000mm Needle Punching Machine High Performance Counter U Model Board Type



Function and characteristics for Needle Punching Machine

Used for pre-punching and reinforcing the web

The single board up punching or down punching can be selected accoeding to individual needling system

The lower needle density is for the primary needling treatment of fiber web

As one main unite in needle punching industry line , this machine is designed for needling fiber web (fineness 1.5-9d, length of 76mm or less polyester ,nylon,polypropylene,viscose,sea-island fiber and other chemical fiber ,cotton fiber ) so as to reinforce and form non woven fabric with a certain of strength .This machine is also used for main needling ,and pre needling and surface finishing ,application as leather substrate, filter material and geo textile ,automative interiors and so on



Electric control operation system

1.the frequency convetor technology is adopted ,and strok frequency and web-in or web-out speed can be adjusted by stepless according to the production technology , the stripping plate and stitching plate can be moved up and down online automatically

2.PLC centralized control and flexible ,convenient and reliable process adjustment



Main specifications

Working width  (2200-10000)mm
Needle density (2000-6000)n/m
Needle stroke (40-60)mm
Needle frequency (800-1200)r/min
Needling type single board ,double stroke



HONGYI-35 - 70mm Stroke Needle Punching Machine High Performance Lower Needle Density 0



our service

*Inquiry and consulting support

* Sample testing support

* View our Factory

* Training how to instal the machine, training how to use the machine

* Engineers available to service machinery overseas

*Nude packing ,buye, wooden case is optional

*Woddencase packing:Carding machine, lapper and electric boxes wooden case packaged. Other machines nude  packaging

*Any damage in transport of machines is not duty of the seller
