3.4m High Speed Automatic Nonwoven Cross lapping machine for quilts

MOQ: 1 SET
Price: negotiation
Standard Packaging: NUDE AND WOODEN CASE
Delivery Period: 60 DAYS AFTER RECEIVIBF DEPOSITE
Payment Method: L/C, T/T
Supply Capacity: 3 sets 60 days
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
HONGE
Certification
CE/ISO
Model Number
2400
Color:
CUSTOMIZED
Input Width:
1700MM-3700MM
Output Width:
2000mm-8800mm
Product Name:
Cross Lapping Machine
Speed:
90m/min
Cerrificate:
CE
Highlight:

non woven fabric spreading machine

,

2400MM fabric spreading machine

,

2400MM textile spreader machine

Product Description

Functions



1. After carding, fiber net is sent to double-belt cross lapper through the non-skid curtain. It will be layered on the down-side curtain, then sent to next equipment by adjustable moving curtain.

2. Convert the fiber sheet to the overlapped form. With the ability to adjust the thickness, weight and evenness of the end product. It is used for the productions of needle punching, thermal bonding and spunlace lines, etc.

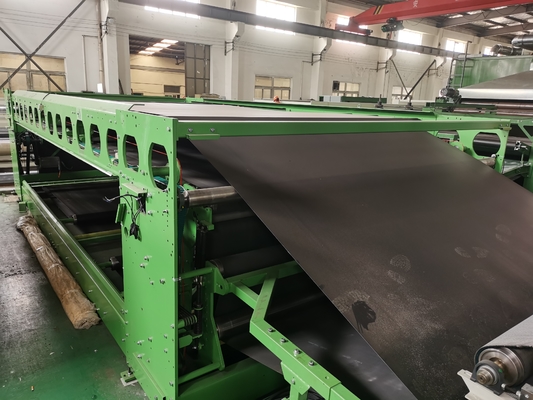

3.4m High Speed Automatic Nonwoven Cross lapping machine for quilts 0

Main technical parameters



Input apron width: 2000-2700mm

Out-put apron width: 2500-8800mm

Lapping speed: 70m/min

Line speed: 1-15m/min

Electrical control system: PLC & touch screen with servo motors



3.4m High Speed Automatic Nonwoven Cross lapping machine for quilts 1



Characteristics:



1. Synchronous and frequency conversion control with position switch.

2. Each lapping belt driven by independent transmission.

3. Clamping infeed lattice with anti-static apron, steady reciprocated carrier.

4. Easy operation and maintenance.



Certificate:

3.4m High Speed Automatic Nonwoven Cross lapping machine for quilts 2



Trade information:

Trade terms EXW, FOB, CFR
Payment terms 30% paid as deposit, 70% paid off before loading.
HS code 8449009000
Lead time 60 days after deposit.
Warranty 12 months.
Original of Goods China



Company introduction:



We are CHangshu Hongyi Nonwoven Machinery CO., LTD, with more than 15 years experience in China. There are about 100 workers, 5000m2 workshop. Our factory is located in Zhitang Industrial park, Changshu city.


Until now, we have established more than 50 series of complete nonwoven production lines all over the country and also expand our business scope abroad, up to date, we have supplied our products to Europe, South America, Middle east areas, Asia,etc.


We have the certificates of ISO 9001 and CE.

We are looking for agent all over the world. Welcome contact us for more information!
Email: admin@hongyiwf.cn

whatsapp:+8615262513303
wechat:+8615262513303
